Features:
- Allows simultaneous sampling across multiple AlazarTech waveform digitizers
- Four coherent clock outputs
- Four synchronous trigger outputs
- Internal clocking up to 1 GHz
- External clocking up to 2 GHz
- Trigger holdoff function for safe synchronous arming of multiple boards
- USB 2.0 controlled
- C++ sample program for use with ATS-SDK for user programmability
- Support for Windows; Linux support coming soon

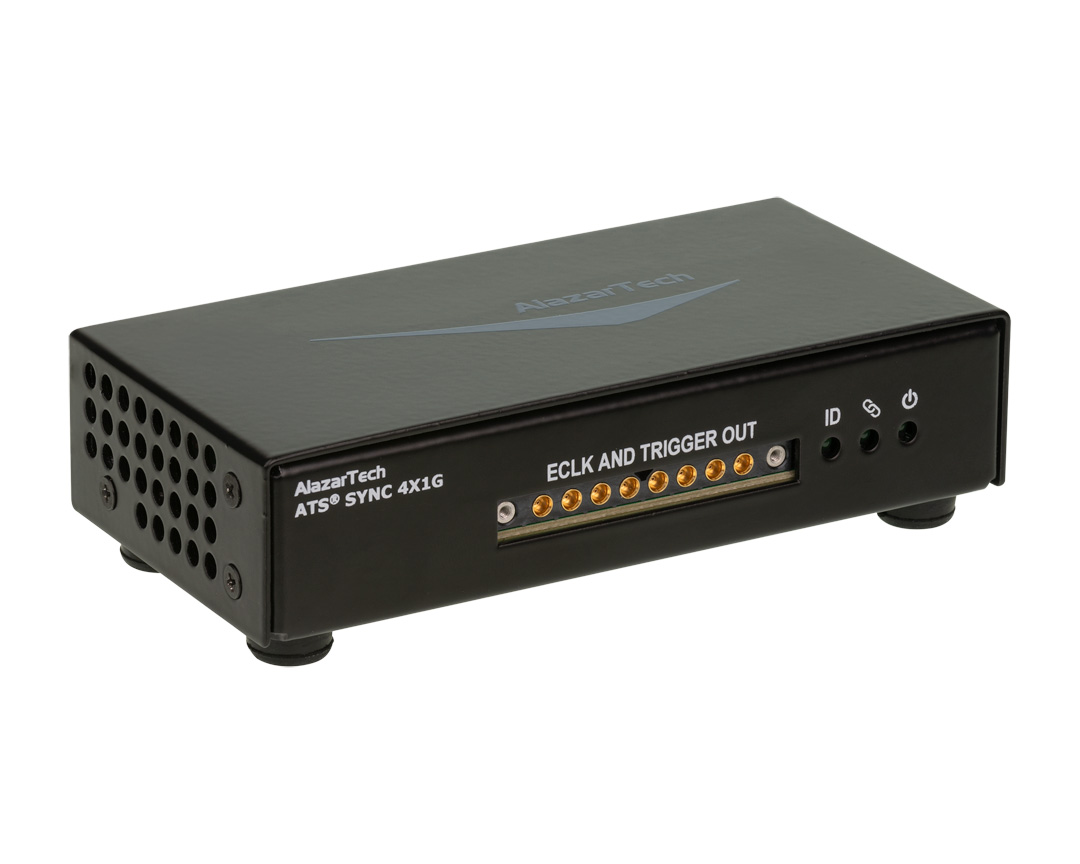

ATS Sync 4X1G
ATS Sync 4X1G is a device that allows simultaneous sampling across multiple independent AlazarTech waveform digitizers. This is achieved by providing common clock and trigger signals to each digitizer.
ATS Sync 4X1G supports Trigger Enable and Trigger Disable so that users can delay triggering until all digitizers are armed; this is a distinct advantage over passive signal splitters.
Accessories & Optional Software
Options & Extended Warranties
Documentation
-
ATS Sync 4X1G Datasheet and specificationsVersion: 1.0B
