Features:
- Allows simultaneous sampling across multiple ATS9130 waveform digitizers
- Four coherent clock outputs
- Four synchronous trigger outputs
- Trigger holdoff function for safe synchronous arming of multiple boards
- USB 2.0 controlled
- C++ sample program for use with ATS-SDK for user programmability
ATS9130: Sync 4X1G

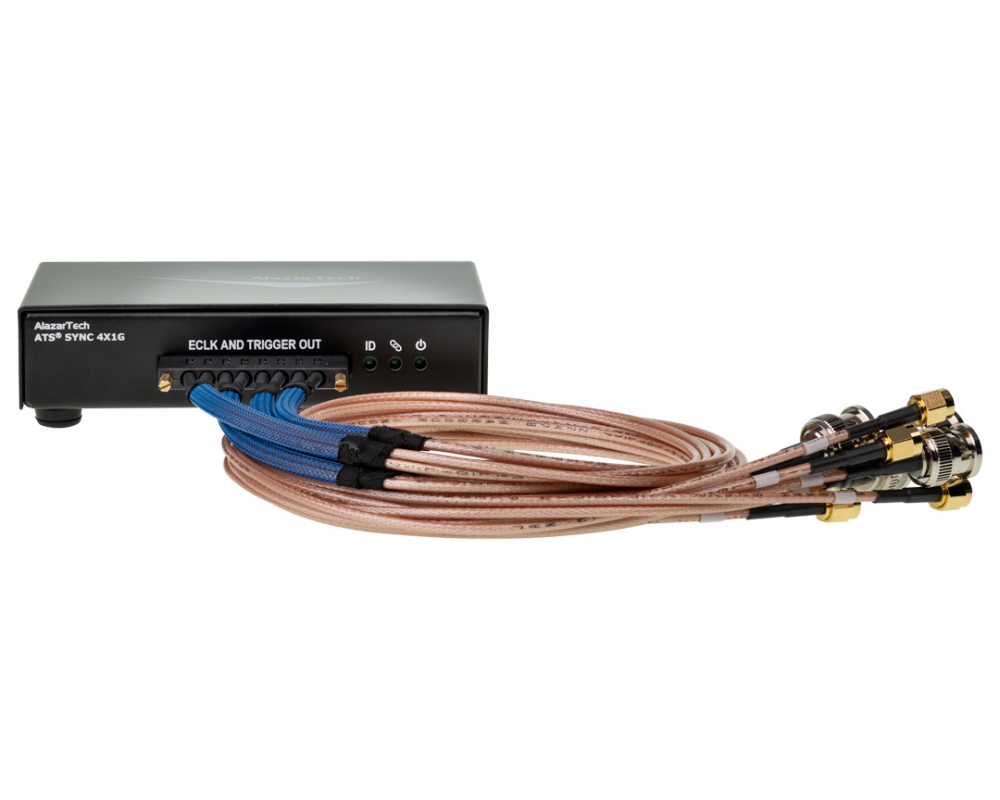

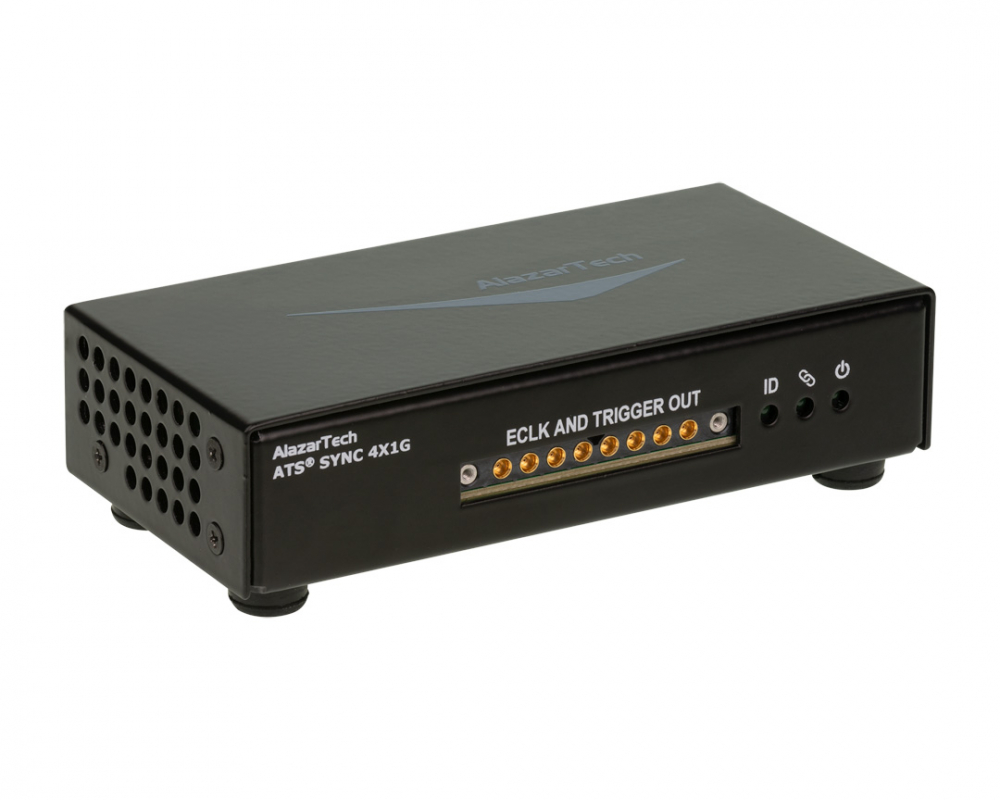

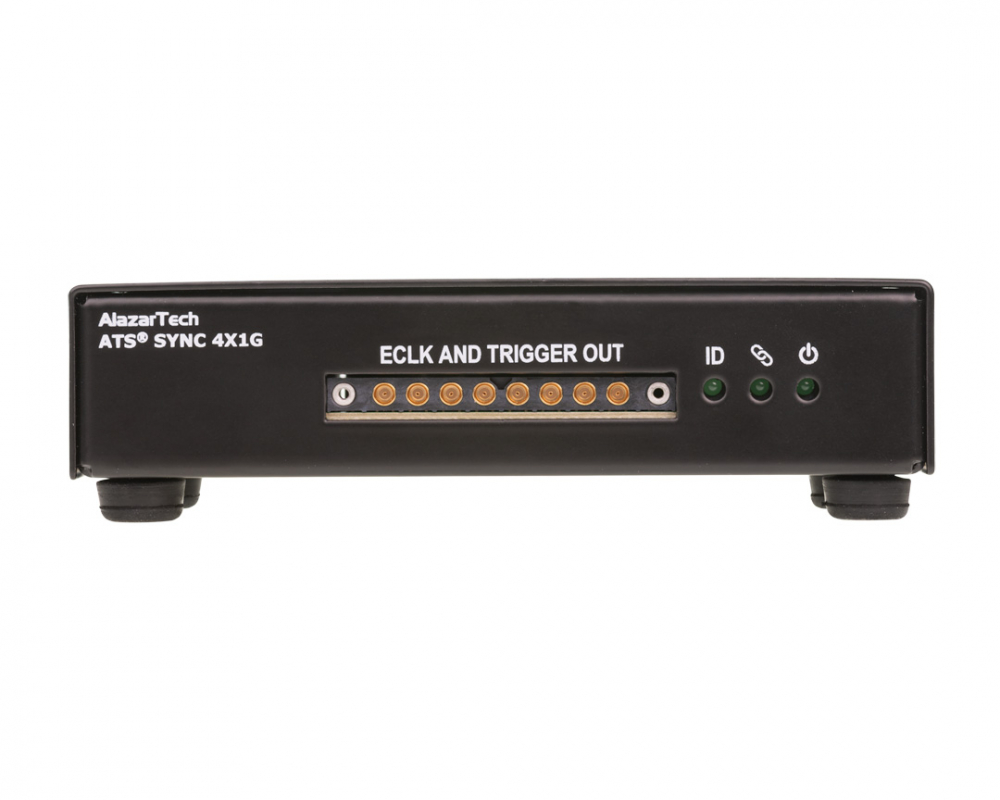

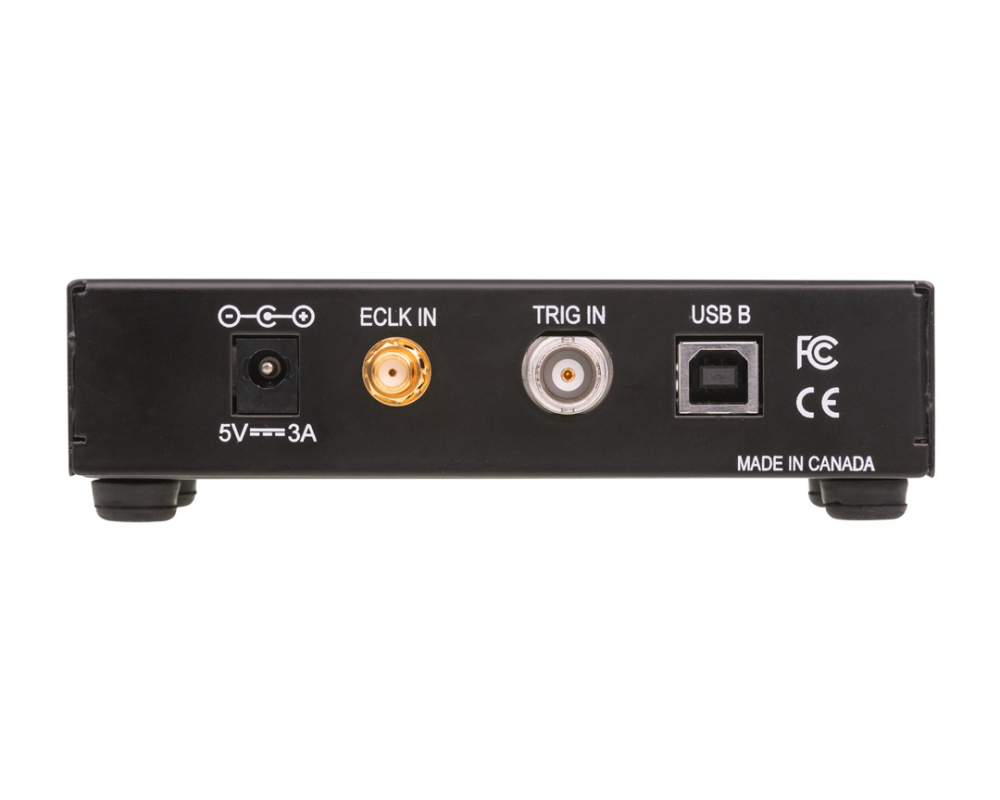

ATS9130: Sync 4X1G is a device that allows simultaneous sampling across multiple independent AlazarTech ATS9130 waveform digitizers. This is achieved by providing common clock and trigger signals to each digitizer.
ATS9130: Sync 4X1G supports Trigger Enable and Trigger Disable so that users can delay triggering until all digitizers are armed; this is a distinct advantage over passive signal splitters.
Accessories & Optional Software
Options & Extended Warranties
Documentation
-
ATS Sync 4X1G Datasheet and specificationsVersion: 1.0B
- Warranty
Software
-
ATS Sync Application & DriverVersion: 1.0.1Release Notes
Change Log
All notable changes to `ATSsync` are documented here.
[1.0.1] - 2024-5-14
Fixed
- Issue where ATSsync driver would not install properly on Windows 11.
Changed
- Replace Syncbox name with ATSsync to match product name.
Added
[1.0.0] - 2024-1-25
Added
- Add support for SyncBoard 6X and 4X.
- Return error if unsupported frequency.
- Python sample program and wrappers for library functions.
Fixed
- Fix Windows driver installation.
- Activate link LED on ATSsync when USB is connected.
[0.3.2] - 2023-7-18
- No user-visible change
[0.3.1] - 2023-6-14
- No user-visible change
[0.3.0] - 2023-2-20
Fixed
- Sync board external clocking.
[0.2.0] - 2022-6-16
- No user-visible change
[0.1.0] - 2022-6-10
Added
- Initial version
