If your application requires more than 2 channels for data acquisition, you can synchronize multiple digitizers on all platforms using a Leader/Follower SyncBoard 9626. SyncBoard 9626 is a mezzanine board that connects to the Leader/Follower connector along the top edge of the ATS9626 and sits parallel to the motherboard.

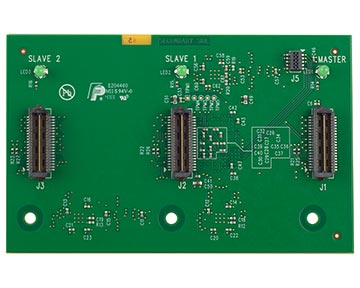

SyncBoard-9626 3x-W allows a 2- or 3-board Leader/Follower system with 2-slot spacing for up to 6 channels of data acquisition.
Synchronize up to four ATS9626 boards for up to 8 channels of data acquisition using the appropriate SyncBoard 9626.
Complete synchronization between Leader board and all Follower boards
The Leader board’s clock and trigger signals are copied by the SyncBoard 9626 and supplied to all the Follower boards. This guarantees complete synchronization between the Leader board and all Follower boards. SyncBoard 9626 allows the use of variable frequency clocks in Leader/Follower configuration. A Leader/Follower system samples all inputs simultaneously and also triggers simultaneously on the same clock edge.
For optimal trigger accuracy, only the Leader board is allowed to trigger the acquisition system.
