- Transfer A/D data to GPU at high speed
- Up to 6.9 GB/s transfer rate for PCIe Gen 3 digitizer boards
- Supports CUDA-enabled GPUs with compute capability 3.0 to 8.6
- Designed to work with AlazarTech PCIe waveform digitizers
- Optional OCT Signal Processing Library: ATS-GPU-OCT
- Optional OCT Signal Processing Library Extension for non-uniform FFTs: ATS-GPU-NUFFT
- Compatible with 64-bit Windows and 64-bit Linux
- Users can create custom kernels for signal processing
- More flexible than FPGA-based DSP
ATS-GPU-BASE

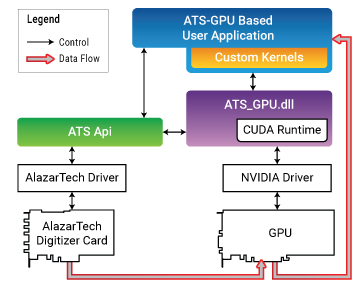

ATS-GPU-BASE 4.1 is a software library developed by AlazarTech that transfers data acquired by its family of PCI Express waveform digitizers to a CUDA-enabled Graphical Processing unit (GPU) at sustained transfer rates as high as 6.9 GB/s. Data is presented in GPU memory as a buffer queue. Expert-level GPU programmers can create very high performance custom kernels to manipulate this data using an easy-to-use application programming interface (API). Fundamentally, ATS-GPU-BASE solves the problem of transferring data from a waveform digitizer to a GPU at very high speeds.
One example of such high performance kernel is the optional ATS-GPU-OCT library (sold separately), which acquires data using ATS-GPU-BASE and then implements full OCT signal processing algorithm using CUDA kernels. ATS-GPU-OCT was benchmarked at up to 950,000 4K FFTs per second, demonstrating the power and efficiency of the ATS-GPU-BASE platform.
The number of possible applications of ATS-GPU-BASE is limitless. In fact, it is limited only by application requirements and the imagination of the programmer.
Vous pouvez être admissible au programme d'évaluation de 30 jours « Try-Before-You-Buy » d’AlazarTech.
Cliquez ici pour savoir si votre organisation est admissible à ce programme.
Accessoires et logiciels optionnels
Options et garanties prolongées
Documentation
-
Fiche technique ATS-GPU-BASEVersion: 24.2
-
Guide d'utilisation ATS-GPU-BASEVersion: 25.1.0
-
Guide d'utilisation ATS-GPU-BASE (.PDF)Version: 25.1.0
- Garantie
Logiciel
Caractéristiques spéciales
Use it with ATS-GPU-OCT for out-of-the-box OCT imaging with very high-speed floating point FFT routines that have been optimized to provide the maximum number of FFTs per second, as well as Dispersion Compensation, Zero Padding, Log, and Windowing Functions.
