Caractéristiques:
- 10.4 GS/s 12-bit A/D conversion
- 20.8 GB/s throughput across x16 PCIe Gen4
- 2 channel operation at 5.2 GS/s
- 24 Gigabytes of on-board Dual-Port Memory
- Fixed ±400 mV Input Range
- Continuous Streaming Mode

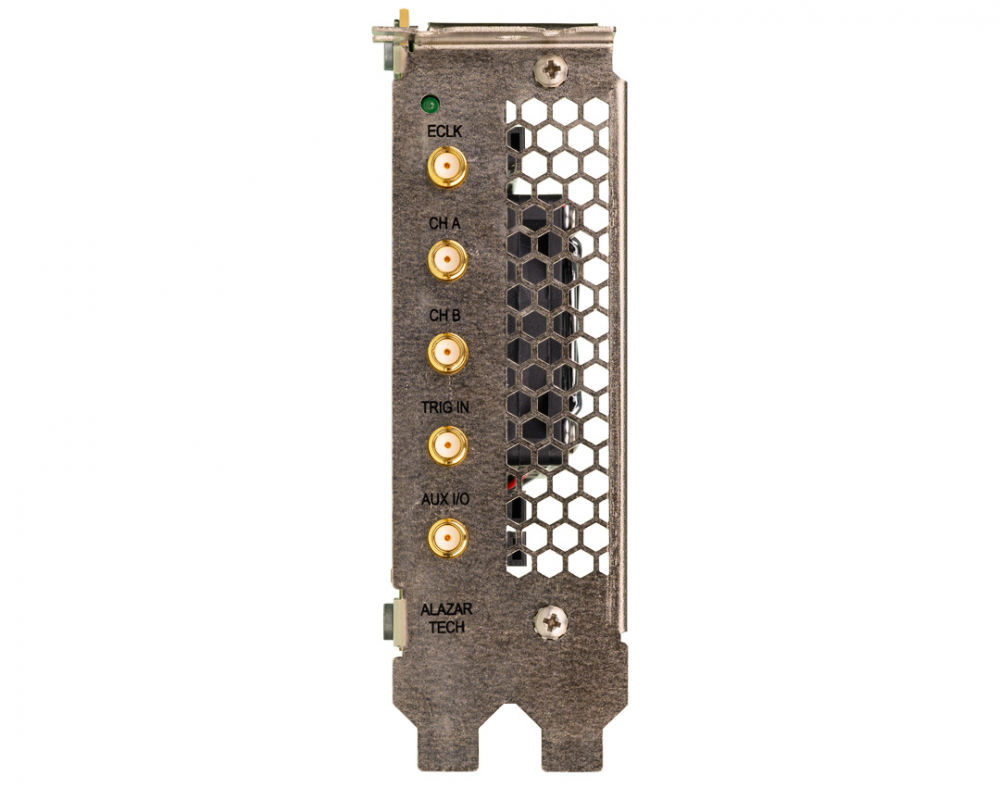

- Trigger Input & Trigger Output connectors
- Full-Length PCIe Gen4 x16 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW (sold separately)
- Support for Windows & Linux

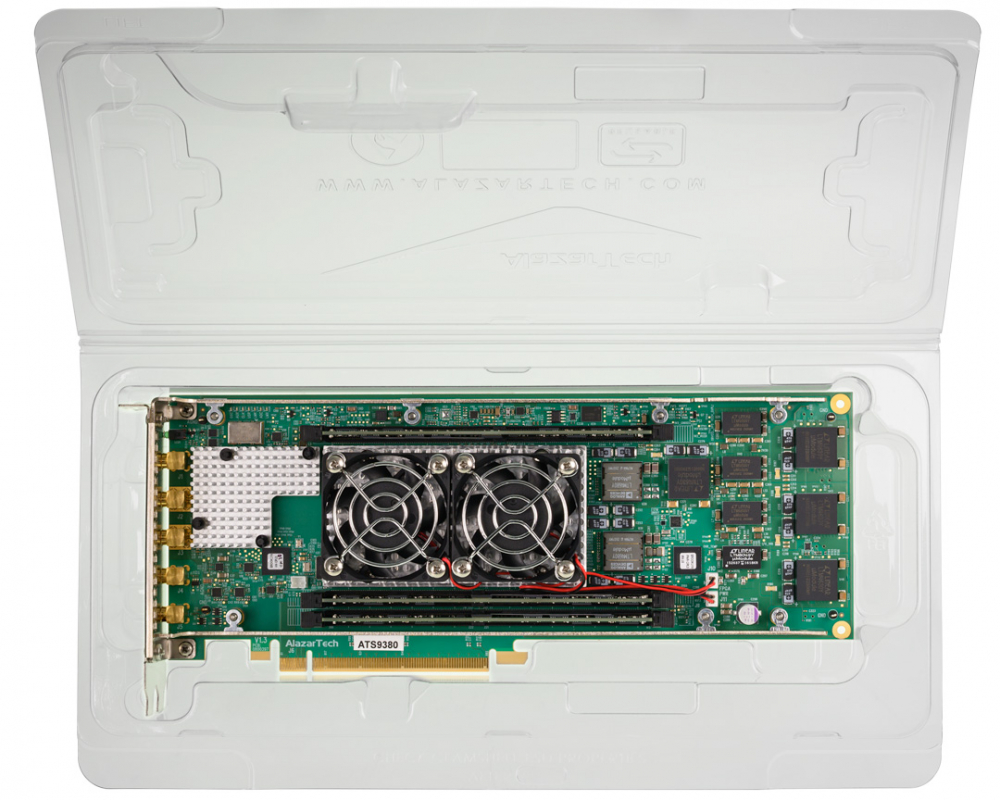

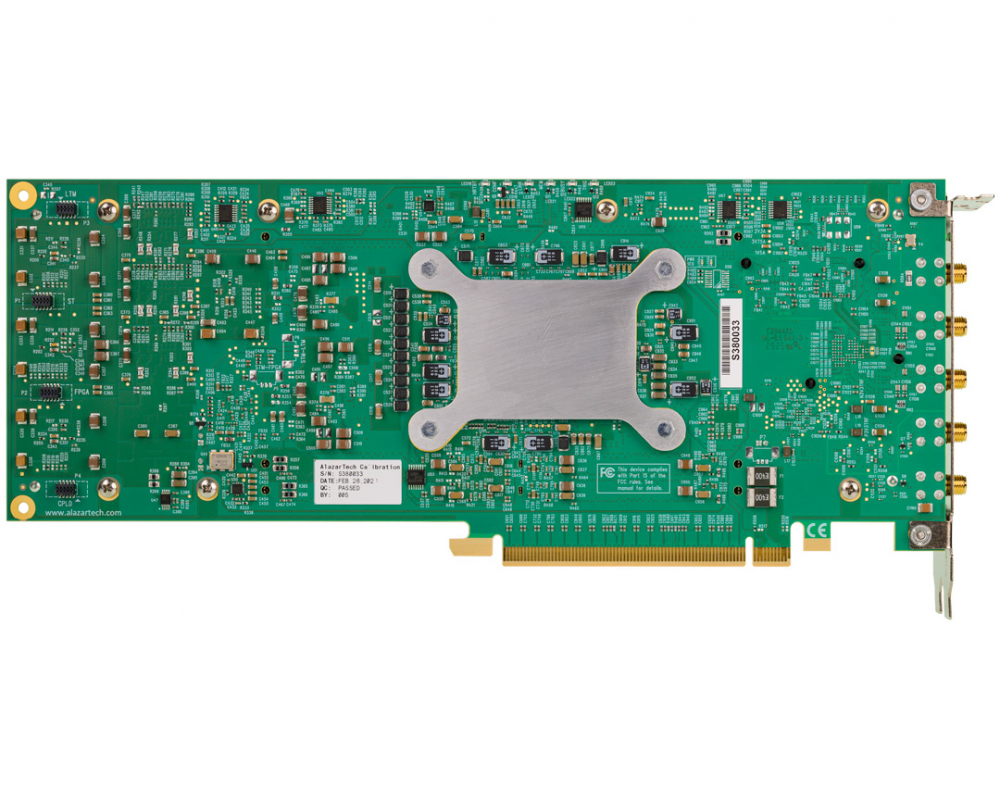

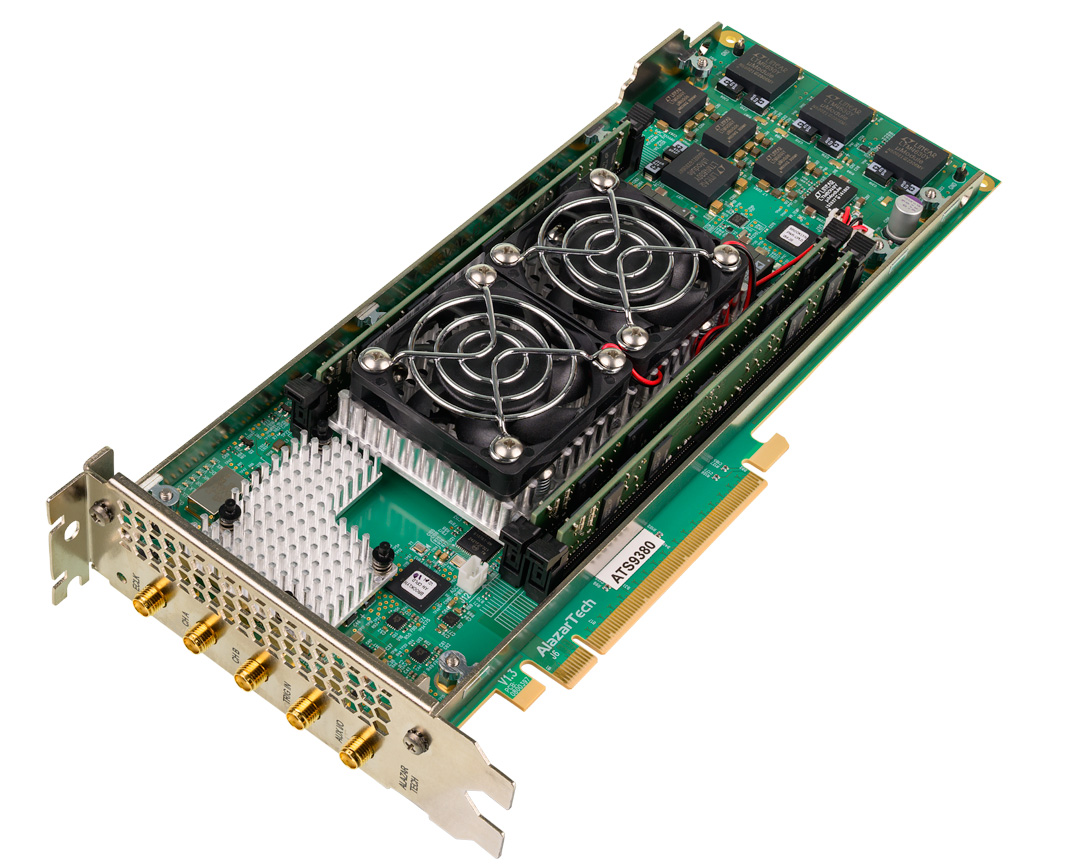

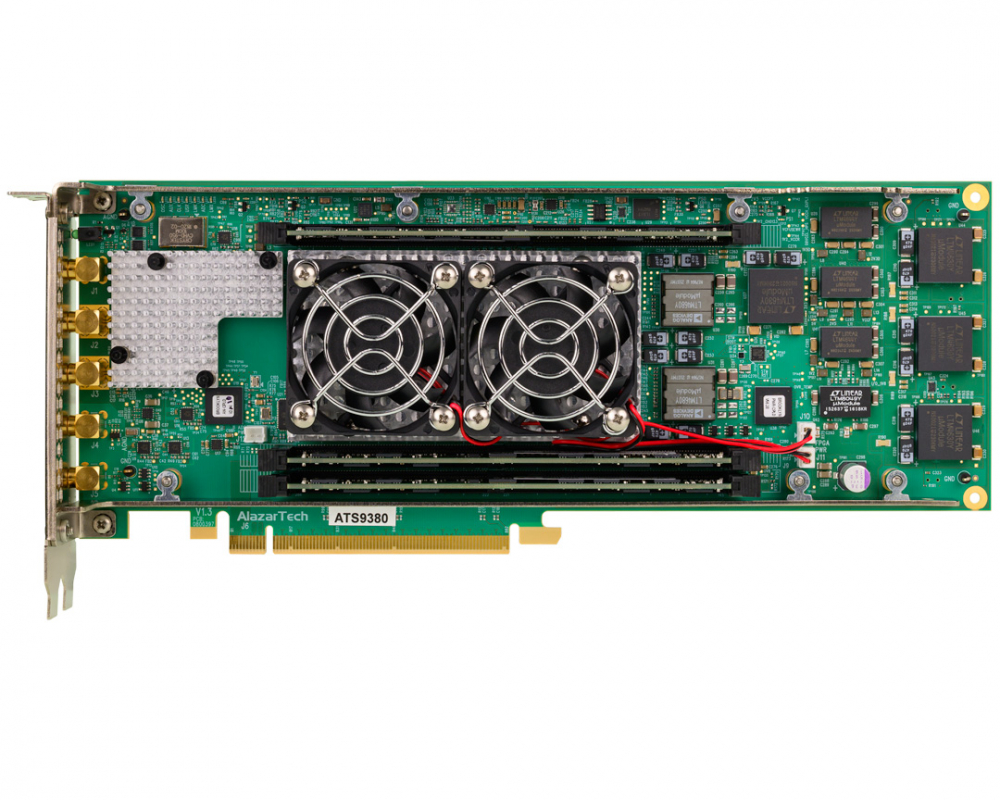

ATS9380 - 12 bit, 10.4 Géch/s
ATS9380 est une carte numériseur et oscilloscope PCI Express gen 4 x16 avec vitesse d'échantillonnage de 10.4 Géch/s, résolution de 12 bits, mémoire à double-port de 12 Géch, horloge de référence 10 MHz, et débit de données jusqu'à 20.8 GO/s.
Accessoires et logiciels optionnels
Options et garanties prolongées
Documentation
-
Programme de rétablissement de garantieVersion: Février 2024
- Garantie
Pilotes
Utilitaires
-
ApiFlags Debug UtilityVersion: 0.0.8
-
Utilitaire Windows pour mise a jour du micrologicielVersion: 3.5.3Notes de version
AlazarTech Firmware Updater Change Log
All notable changes to the AlazarTech Firmware Updater Command Line Utility are recorded here
[3.5.3] - 2023-9-1
Fixed
- Issue where package doesn't install under AlazarPackageManager.
- Verification to check is firmware filename is for the right board type.
[3.5.2] - 2023-3-31
Fixed
- Issue where QT6 dependencies are not included in the package.
[3.5.0] - 2022-10-11
- No user-visible change
[3.4.1] - 2021-5-21
Fixed
- Issue where advanced options were not taken into consideration.
[3.4.0] - 2021-2-24
Removed
- Option to reload FPGA after an update completes. This option causes instabilities on some systems.
Fixed
- Issue with firmware updater crashing during update with library >7.3.0 and boards supporting spi flash.
[3.3.0] - 2020-4-27
Added
- Add support for ATS9637, ATS9437 and ATS9618.
- Display the utility's version on the GUI's main window and in the log file
- Prevent firmware update from running if library and driver are too old; this could corrupt the board's firmware
Changed
Fixed
- Issue with the command-line interface where the "Update ... successful" message could appear before the last progress bar update.
- Typos in user dialogs
- Stop including ATSApi.dll with firmware updater
[3.2.4] - 2019-10-3
Fixed
- Bug where ATS9870 update would not work for recent boards.
[3.2.3] - 2019-7-4
Added
- Add support for boards using serial flash interface.
[3.2.2] - 2019-4-19
Added
- Message during the update to warn users not to turn off the machine.
Fixed
- Bug that prevent option bits from being written on ATS9360, ATS9371, ATS9373, ATS9416, ATS9120 and ATS9130. This issue made it so that updates of page 0 would often fail.
Changed
[3.2.1] - 2019-2-21
Changed
- Prevent updating 9373-A3 boards with 9373-D6 firmwares and vice versa
[3.2.0] - 2019-1-18
Changed
- Updated license agreement
Added
- License agreement in manual
- Digitally sign the Windows installation program
- Install manual directly in installation location
[3.1.0] - 2018-10-24
Added
- Support for ATS9130
- Desktop link for GUI
- Disable API logging automatically for this application. This makes it so that it is not necessary to disable API logging manually before starting this program.
Changed
- Documentation update
[3.0.1] - 2018-5-29
Fixed
- Bug that caused ATS9416 firmware flash to fail with "Error: sector read not supported"
[3.0.0] - 2018-2-22
Added
- Support for ATS9120, ATS9371 and ATS9416
[0.3.0] - 2017-7-17
Added
- Ameliorate command-line interface
- Replace API with C version
- Add reload FPGA support
[0.2.1] - 2016-9-23
Added
- Documentation for page options
[0.2.0] - 2016-6-27
Changed
- Renamed `fwupdater` to `fwupdater-cli`
Added
- Install `fwupdater` to standard `bin` directory
- Quiet option that produces no console output
- Conan support
[0.1.3] - 2015-9-1
Added
- Support for ATS9373
[0.1.2] - 2015-8-12
Added
- Support for Linux distributions without standard C++11 compilers
[0.1.0] - 2015-6-15
Added
- Initial Version
